24V/48V Circular Magnetic Track Lighting System for Showrooms & Commercial Interiors
Low-voltage 24V/48V circular magnetic track lighting system with recessed, surface-mounted or suspended installation. Compatible with flood, grille, adjustable grille, spotlight and pendant modules, with CRI Ra≥90 and 2700K–5700K CCT options for showrooms, offices and interior projects.
Specifications
- Material
- Aluminium
- Power
- 6-12W,20W,10W,12W,10W
- Application
- Showroom,shop,office
24V/48V Circular Magnetic Track Lighting System
This circular magnetic track lighting system is designed for flexible architectural and commercial lighting layouts. It combines a continuous circular track with interchangeable magnetic lighting modules that can be positioned around the track according to the lighting requirement.
The system supports 24V or 48V low-voltage operation and offers three installation methods: recessed, surface-mounted and suspended. Different lighting modules can be selected for general illumination, focused accent lighting or decorative applications within the same track system.
Its modular structure makes it suitable for showrooms, offices and other interiors where lighting positions or functions may need to change over time.
Key Features
Three Installation Methods
The circular track can be configured for:

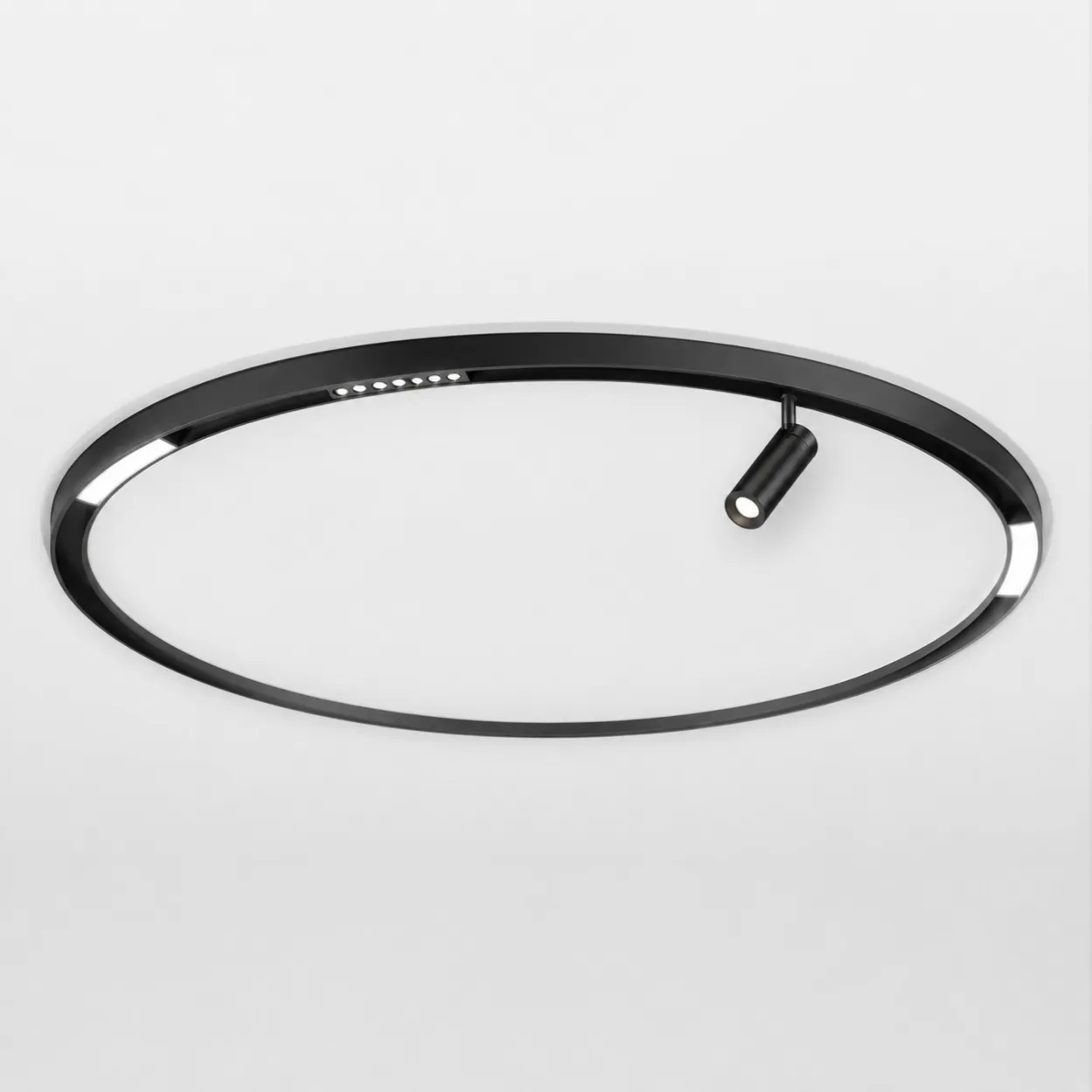

- Recessed installation

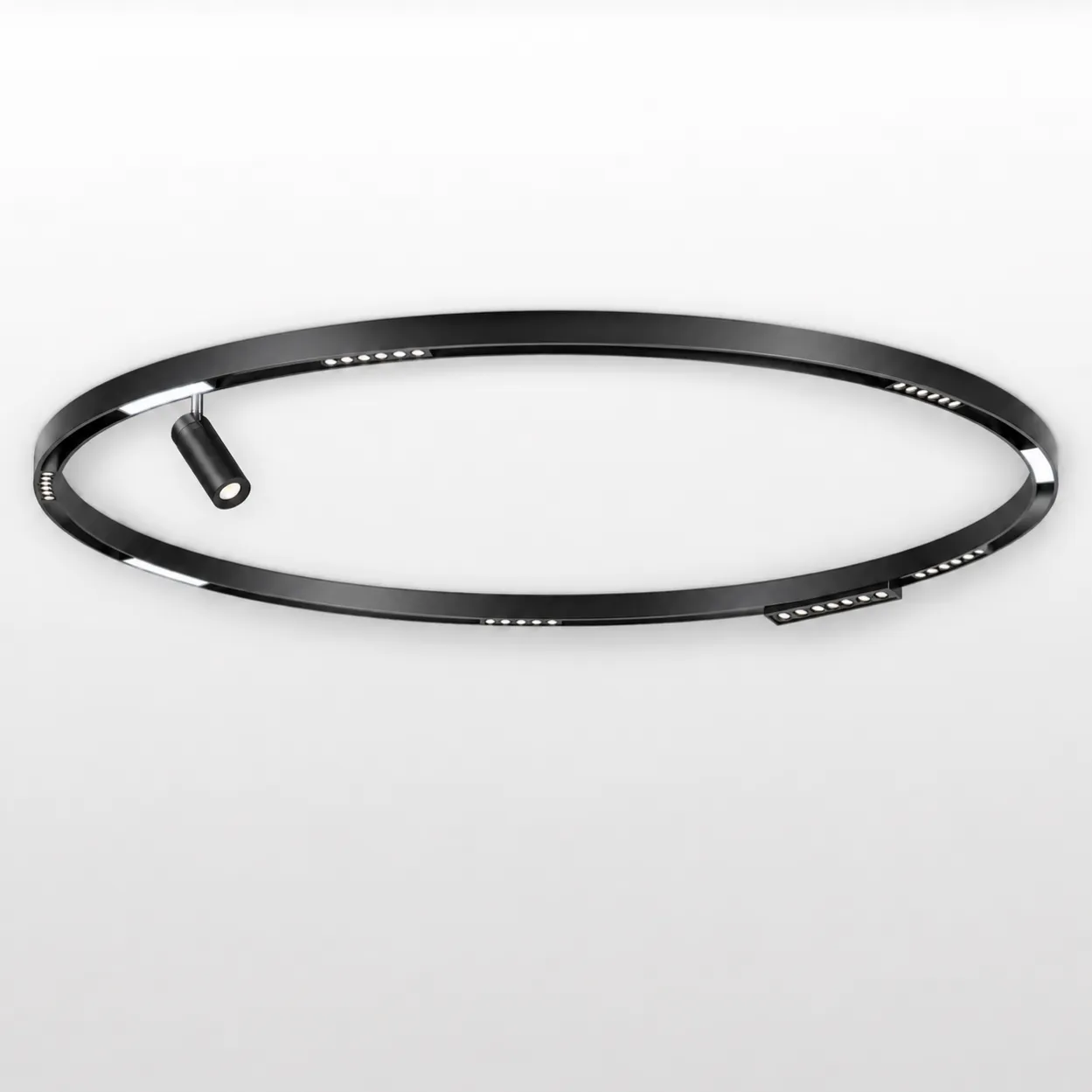

- Surface-mounted installation

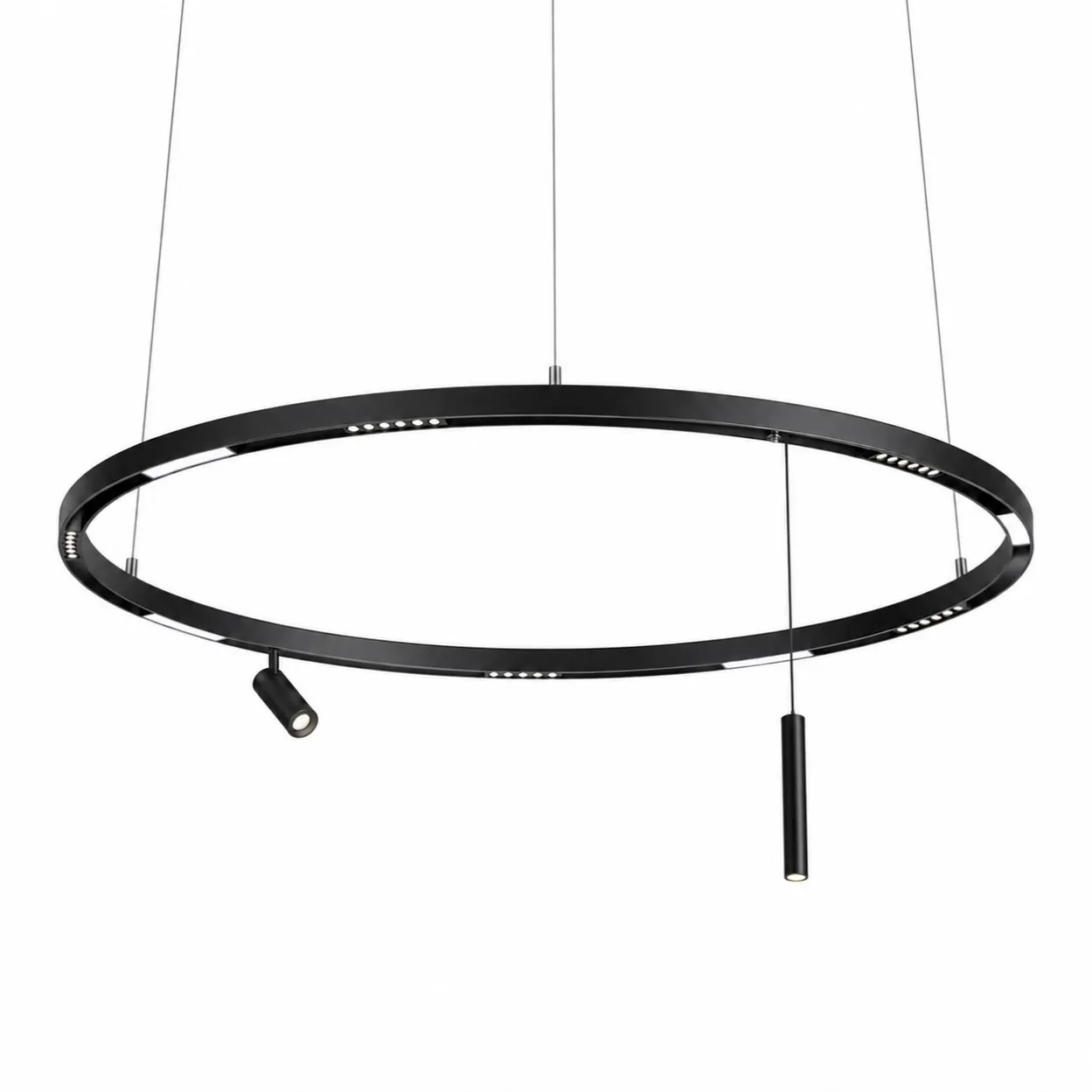

- Suspended installation
This gives project buyers greater flexibility when adapting the system to different ceiling conditions and interior concepts.
24V / 48V Low-Voltage System
The product specification lists 24V and 48V low-voltage operation, suitable for modular magnetic lighting applications.
Magnetic Module Installation
The lighting modules use a strong magnetic mounting structure, allowing compatible fixtures to be positioned around the track according to the lighting layout.
CRI Ra≥90
A Color Rendering Index of Ra≥90 is listed in the supplied specification, supporting more natural and accurate color presentation in commercial interiors.

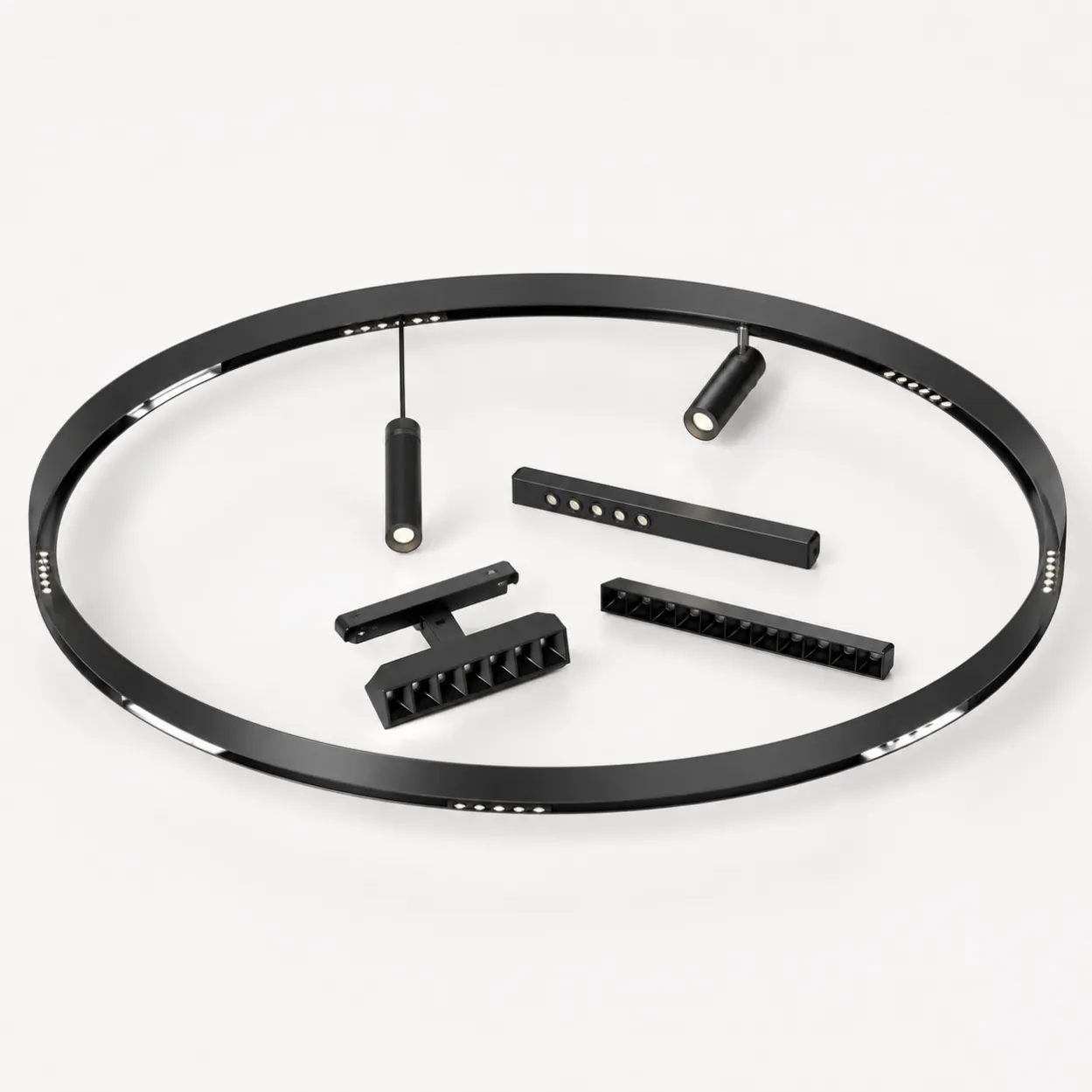

Multiple Lighting Functions
The same track system can work with several light-module types:
- Flood Light
- Grille Light
- Adjustable Grille Light
- Spotlight
- Pendant Light
This allows one circular lighting system to combine ambient, accent and decorative lighting functions.
Flexible Module Positioning
Compatible magnetic fixtures can be arranged at different positions along the track, helping designers and project buyers adjust lighting distribution according to displays, furniture layouts or focal points.
Available Lighting Modules
Module | Power | Luminous Efficiency | Size | Beam Angle |
|---|---|---|---|---|
Flood Light | 6–12W | 70 lm/W | 180 / 360 × 22 × 25 mm | 120° |
Grille Light | 20W | 80 lm/W | 180 / 360 × 22 × 25 mm | 15° / 24° / 36° |
Adjustable Grille Light | 10W | 80 lm/W | 222 × 30 × 117 mm | 15° / 24° / 36° |
Spotlight | 12W | 80 lm/W | Approx. Ø50 × 140 × 48 mm* | 15° / 24° / 36° |
Pendant Light | 10W | 80 lm/W | Ø60 × 300 mm | 15° / 24° / 36° |
*The spotlight dimension in the supplied image is not perfectly clear, so I would recommend confirming the final dimension with the supplier before publishing it as a fixed specification.
Color Temperature Options
Available CCT options shown in the supplied specification:
2700K / 3000K / 4000K / 5700K
This range allows the system to support different lighting atmospheres, from warmer decorative environments to cooler commercial spaces.
Beam Angle Options
Different modules provide different light distributions:
- Flood Light: 120°
- Grille Light: 15° / 24° / 36°
- Adjustable Grille Light: 15° / 24° / 36°
- Spotlight: 15° / 24° / 36°
- Pendant Light: 15° / 24° / 36°
This gives project buyers the flexibility to combine wide general lighting with narrower accent lighting in one system.
Recommended Applications
According to the supplied product information, recommended applications include:
- Showrooms
- Retail and display spaces
- Offices
- Residential interiors
- Commercial interior projects
For your website positioning, I would emphasize showrooms, offices, retail and commercial projects first rather than leading with “home”.
Project & Wholesale Advantages
For commercial projects and wholesale programs, the main advantage is the ability to combine different lighting modules within one coordinated track system.
Buyers can select different module types, power options, beam angles and color temperatures according to the lighting plan.
For project or wholesale quotation, it is useful to provide:
- Track diameter or layout
- Installation method
- Required lighting modules
- Quantity
- CCT
- Beam angle
- Destination
- Target project timing
